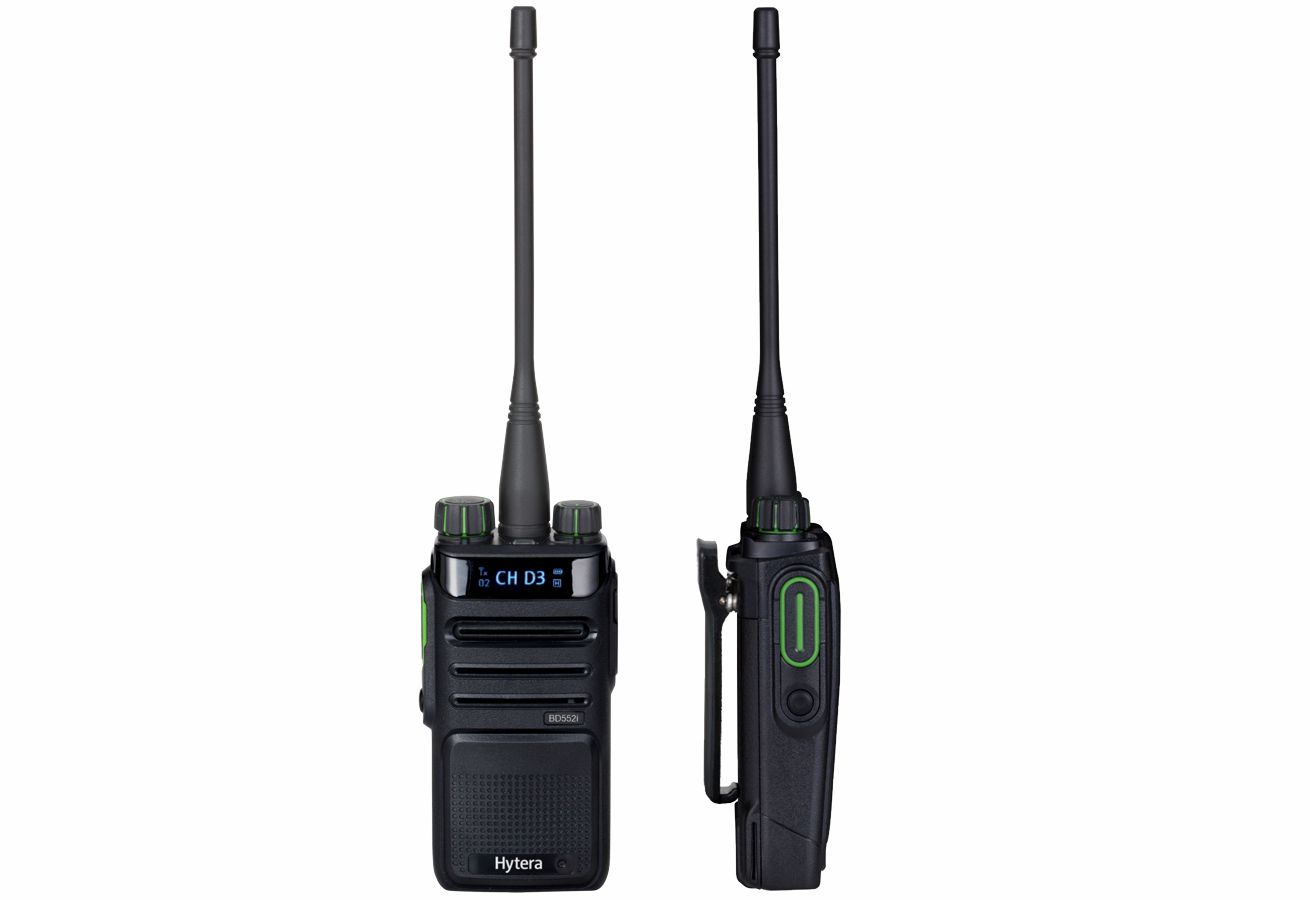

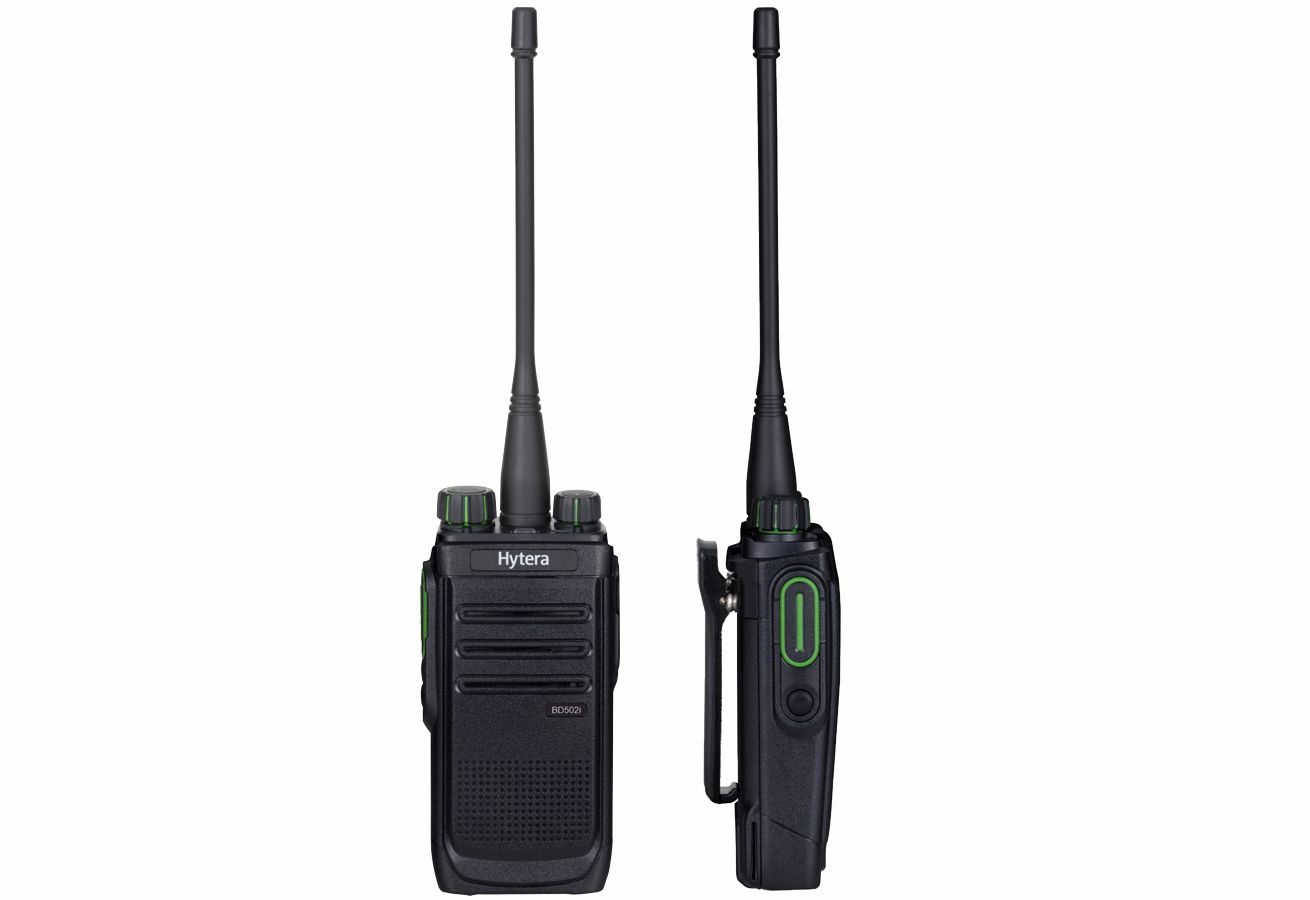

BD502i/BD552i Two-Way DMR Radios
Compact, cost-effective, and easy to use. The BD5i Series provides excellent digital voice performance with a durable, lightweight design
What makes the BD5i Series different
The Hytera BD5i Series offers a seamless upgrade path to digital systems by operating in both analog and digital modes. Weighing less than 9 ounces, these highly compact radios are designed to be easy to carry and operate all day long.
The series includes two models to fit your specific operational needs: the straightforward BD502i, featuring an audio channel announcement , and the advanced BD552i, which boasts a high-contrast OLED screen and optional built-in Bluetooth.
Quick highlights
- Can be programmed to operate in analog or digital DMR mode.
- Up to 16 hours of operation in digital mode with the standard 1500mAh battery.
- Audio equalizer adjusts low, mid, and high-frequency gain for high-quality audio.
- Compliant with MIL-STD-810-G for shock and vibration.
- IP54 rated for water and dust resistance.
Highlighted features
Clear Audio in Any Environment
Whether you are in a noisy or quiet environment, the integrated audio equalizer ensures the best audio performance. Additionally, digital encoding and error correcting reduce signal interference on the same frequency.
Two Models to Fit Your Fleet
Choose the BD502i for a streamlined 48-channel device with voice announcements for fast, accurate channel switching. Step up to the BD552i for 256 channels, a clear OLED display, and optional Bluetooth connectivity for wireless accessories.
Smooth Digital Migration
Both models operate in analog or digital mode, allowing you to easily switch between the two to communicate with legacy analog radios. This provides a simple, cost-effective migration path to digital.
Designed for Safety and Efficiency
Improve worker safety and emergency response times with a programmable button that sends one-touch Emergency Alarms to other radios. The radios also feature Pseudo Trunking, which automatically uses whichever digital timeslot is free to improve frequency efficiency and call connectivity.
Ideal for
The BD5i series has use cases across many work settings, including:
-
Operations requiring a simple migration path from analog to digital
-
Workforces operating in harsh environments
-
Teams needing hands-free VOX capabilities
-
Warehousing and Logistics
- Entertainment Venues
- Small Campus Education
- Restaurants and Hospitality
- Property Management
- Retail
BD5i Series Specs
The BD5i series radios are available in both UHF (400-470 MHz) and VHF (136-174 MHz) frequency ranges. The BD502i weighs 8.5 ounces and supports 48 channels across 3 zones. The BD552i weighs 8.8 ounces, features a 0.91-inch OLED single-line display, and supports 256 channels across 16 zones. Both models come with a standard 1500mAh Li-Ion battery.
Tech Specs
-
Dimensions: 4 1/4″ x 2 1/8″ x 1 5/32″ (108 x 54 x 29mm)
-
RF Power Output: VHF High: 5W / Low: 1W; UHF High: 4W / Low: 1W
-
Battery Life: 16 hours Digital, 12 hours Analog (with 1500mAh battery)
-
Durability: IP54 Standard / Per MIL-STD-810 C/D/E/F/G Standard
-
Operating Temp: -22°F to +140°F (-30°C to +60°C)
Local support in Hawaii
Trust Starcomm Wireless for the reliable local support you need to keep your teams connected.
Contact us today to test the BD502i or BD552i and see how they upgrade your operations across Oahu.
If your team encounters any issues, our local experts are here to provide immediate assistance, right here in Hawaii.
BD5i Series Questions
What is the exact difference between the BD502i and the BD552i?
The BD502i supports 48 channels across 3 zones and features an audio channel announcement. The BD552i supports 256 channels across 16 zones, includes an OLED display, and offers optional built-in Bluetooth.
Do these radios work with my older analog system?
Yes. Both radios can be programmed to operate in analog or digital DMR mode, and you can switch between the two to communicate with your existing analog radios.
Can I use a hands-free earpiece?
Yes. Both models support a voice-activated microphone (VOX) which enables hands-free operation on external earpiece accessories. Additionally, the BD552i-BT models support Bluetooth accessories for wireless audio.
Are these radios durable enough for outdoor use?
Yes. Both models are IP54 rated for dust and water resistance and meet MIL-STD-810-G standards for shock and vibration, guaranteeing reliability in harsh environments.
How long will the battery last during a shift?
The standard 1500mAh Lithium-Ion battery delivers up to 16 hours of operation in digital mode and 12 hours in analog mode. If your team works extended shifts, there is also an optional 2200mAh battery available that provides up to 22 hours of digital operation.
Where does Starcomm support service locally?
Starcomm states it is located in Honolulu (Kalihi) and lists Oahu plus Kona Coast coverage areas for digital airtime.
